Transfer Section IXVR 80

Applications
Transfer section Type IXVR 80 is intended for use when angled transfers of goods, such as pallets, etc, are required.

Description
Driven roller conveyor including 2 chain strings with pneumatic lifting device for transfer function, excluding drive unit, pneumatic valve and sensor.

Specification

Material/TypeFinishOrder separately
Frame/Conveyor beamSteelZinc-plated
Cover capAluminiumAnodized
BellowsBosch Rexroth
Inductive sensorSick / M18X
Pneumatic valveBosch RexrothX

Teknisk data

TypeRoller length EL mmRoller pitch T MmCentre distance C/C mmMax. load kg
IXVR 80 –95015010501200
IXVR 80 –115015010501200
When ordering, contact InterSystem for more information.

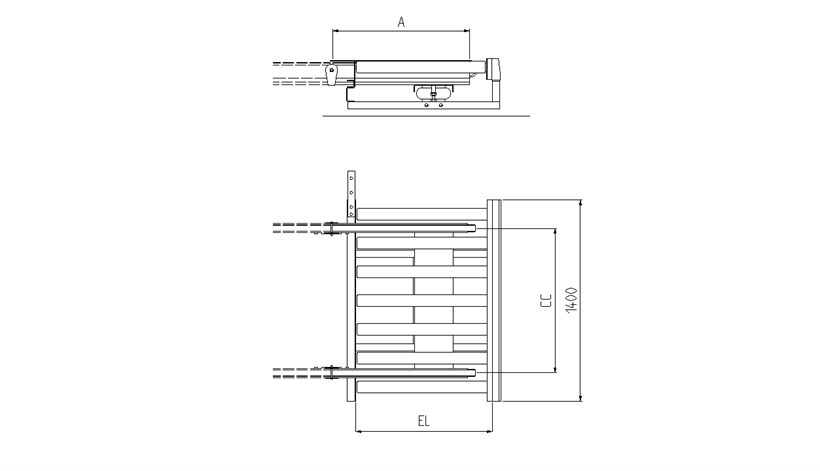

Blueprint

impulz-80_vaexelsektion_typ-ixvr-80_blueprint

Ordering example

Example structure for ordering this catalog item.

IXVR 80 – 950
Type - EL
