Transfer Conveyor IRMS 50

Applications
Transfer conveyor Type IRMS 50 is intended for transport of unit loads such as boxes, trays, tote bins, etc.

Max. load
50kg/unit and 100kg/m. Depends on roller/support stand pitch.

Transfer Conveyor IRMS 50

Specification

Material/TypeFinishOrder separately
Frame profileAluminiumAnodized
Roller Type SRO 50SteelZinc-plated
Support stand Type ITBG 50Steel/AluminiumZinc-plated/Anod.X
Support stand pitchNo. of support stands/m: See diagramZinc-plated/Anod.X
Side guide holder Type 50AluminiumAnodizedX
Transfer Arm Type ITVA 50SteelZinc-platedX

Technical data

Roller lengthEL420, 520 och 620 mm
Roller diameterD50 mm
Roller pitchT75
When ordering, contact InterSystem.

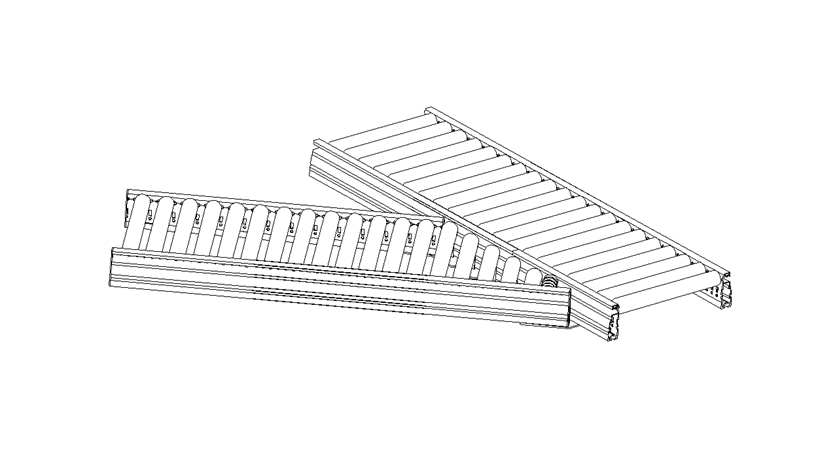

Blueprint:

spetsmodul_typ-irms-50_blueprint

How to order:

IRMS 50 - 420 – 30°
Type - EL - V
