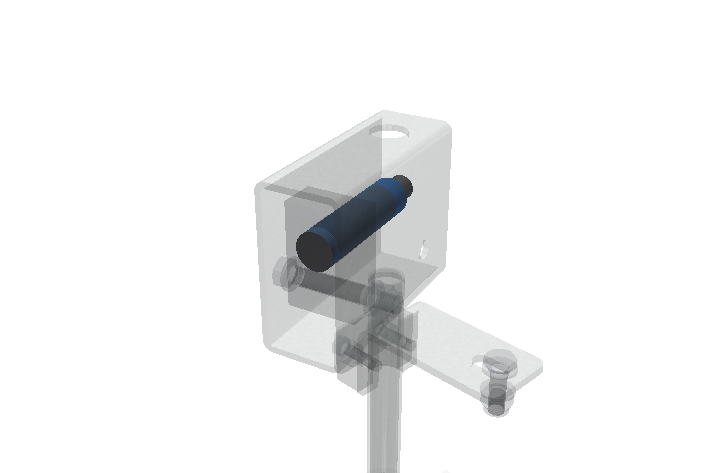

Photocell 01/02

Applications
Photocell is intended for position indication or detection of products on conveyors, etc.

Description
Photocell type PNP with visible infra-red light. 10 – 30V DC IP 67. Supplied excluding reflector. Required cable is ordered separately.

Photocell 01/02

Specification

Make/TypeMaterial/FinishOrder separately
Photocell 01/02Sick/M18Metal/Nickel-plated
ReflectorX
Cable M12 5MX

Teknisk data

TypeArticle numberDes.Range mSensor connector mmAngled Contact 90° M12, 5m
01940 017Str.0,05-3,712
02940 019Str.0,05-3,712
Cable971 012X
Reflector940 025Outer dimensions: 30x82mmReflector surface: 30x50mm

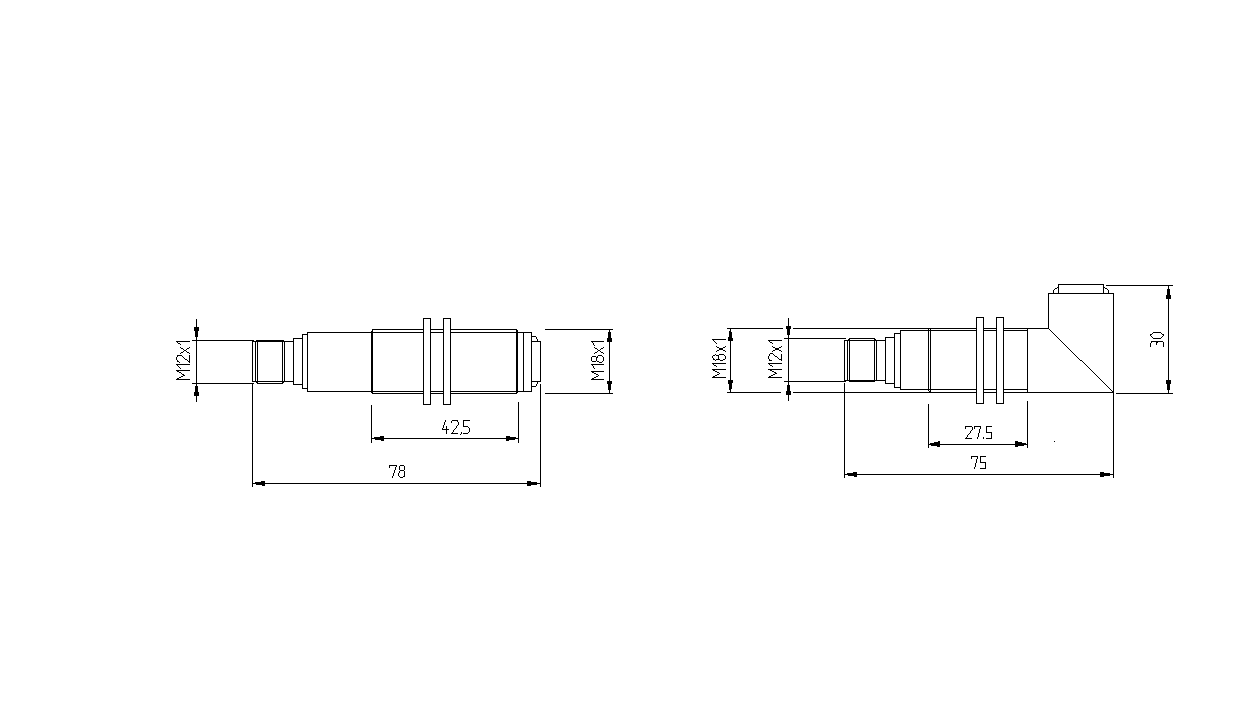

Blueprint:

fotocell_typ-01-02_blueprint

How to order:

940 017
Art.no.
