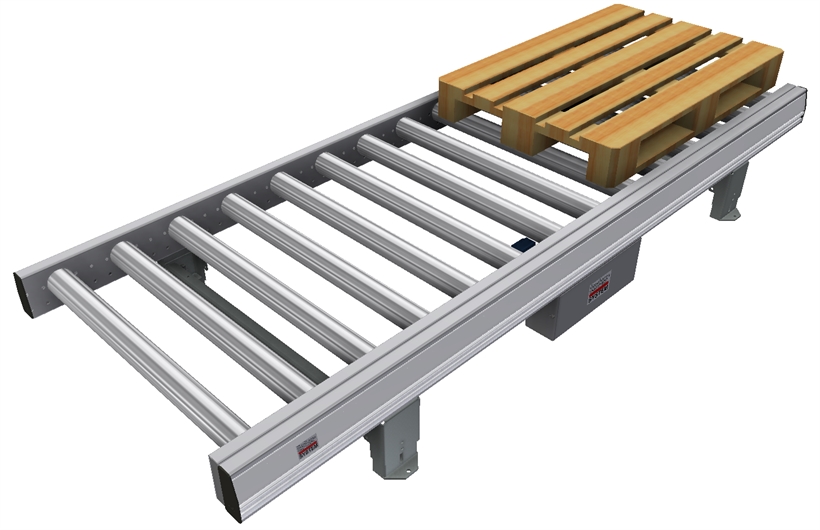

Driven Conveyor IRKS 80

Applications
Driven Conveyor Type IRKS 80 is intended for transport of unit loads such as pallets, etc.

Description
Chain-driven conveyor.

Max. load
1800 kg/m. Depends on roller/support stand pitch.

Driven Conveyor IRKS 80
Konfigurationer:
Drive Unit IRUK 80

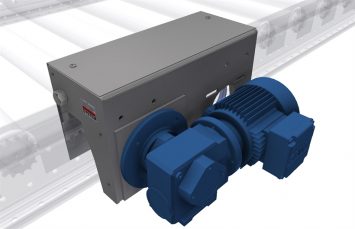

Drive Unit IRDS 80

Specification

Material/TypeFinishOrder separately
Frame profileSteelGalvanized
Cover capAluminiumAnodized
Roller Type SKE 80SteelZinc-plated
Drive unit Type IRUK/IRDK 80SteelZinc-platedX
Support stand Type ITBG 80SteelZinc-platedX
Support stand pitchNo. of support stands/m: See diagram.

Technical data

Roller lengthEL950 and 1150mm
Roller diam.D80 mm
Roller pitchT150 and 200mm
Total lengthTL600 - 12000 interval 200mm

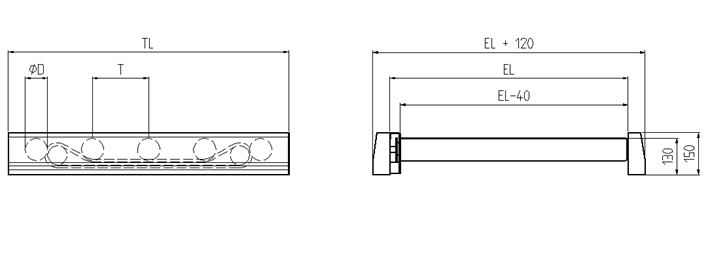

Blueprint:

impulz-80_rullbana-driven_typ-irks-80_blueprint

How to order:

IRKS 80 – 200 – 950 - 1000
Type - T – EL - TL
